Features
1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ video inhancer
4. Advanced 4×4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080P input
6. 10-bit Processing
7. Pre-switch, seamless switch, fade-in / fade-out functions in random input signals
8. Unrestricted PIP display( PIP / POP )
9. 1920×1080@60Hz maximal output for single machine
10. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command
for operating and setting
11. Press keys or knob on frontal panel to directly select 4-channel input signal source,
including 2 × CVBS, 1 × DVI / HDMI, 1 × VGA
12. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI, there are 3-channel audio
for synchronous switch
13. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
14. 24 / 7 Application, High reliability and stability
● Feature one : Fade-in / Fade-out
● Feature two : HD PIP, HD POP
Specifications
| Inputs | ||
| Nums / Type | 2×Composite 1×VGA( RGBHV ) 1×DVI / HDMI ( 1.3a with HDCP ) | |
| Video system | PAL / NTSC | |
| Composite Video Scope / Impedance | 1V（p_p）/ 75Ω | |
| VGA Format | PC（VESA） | ≤2048×1152@60Hz |
| VGA Scope / Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI / HDMI Format（HDCP） | SD / HD（CEA -861） | ≤1920×1080@60Hz |
| PC（VESA） | ≤2048×1152@60Hz | |
| AUDIO Scope / Impedance | 2.0Vp-p/10KΩ | |
| Input Connectors | VGA：15pin D_Sub ( Female ) DVI：24+1 DVI_D Composite：BNC | |
| Outputs | ||
| Nums / Type | 1×VGA（RGBHV） 2×DVI | |
| VGA / DVI Format | 1024×768@60Hz / 75Hz 1280×1024@60Hz / 75Hz 1600×1200@60Hz 1920×1080@50Hz / 60Hz 1366×768@60Hz 1440×900@60Hz | |
| VGA Scope / Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| Output Connectors | VGA OUT：15pin D_Sub ( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D | |
| Others | ||
| Control | Panel Button / knob / RS232 / USB | |
| Power | 100-240VAC 35W 50 / 60Hz | |
| Operating Temp | 5-40 ℃ | |
| Humidity | 15-85% | |
| Dimensions（Package） | 145mm（height）×370mm（width）×535mm（length） | |
| Weight（G.W.） | 5.0 Kg | |
| Weight（N.W.） | 3.2 Kg | |
Application

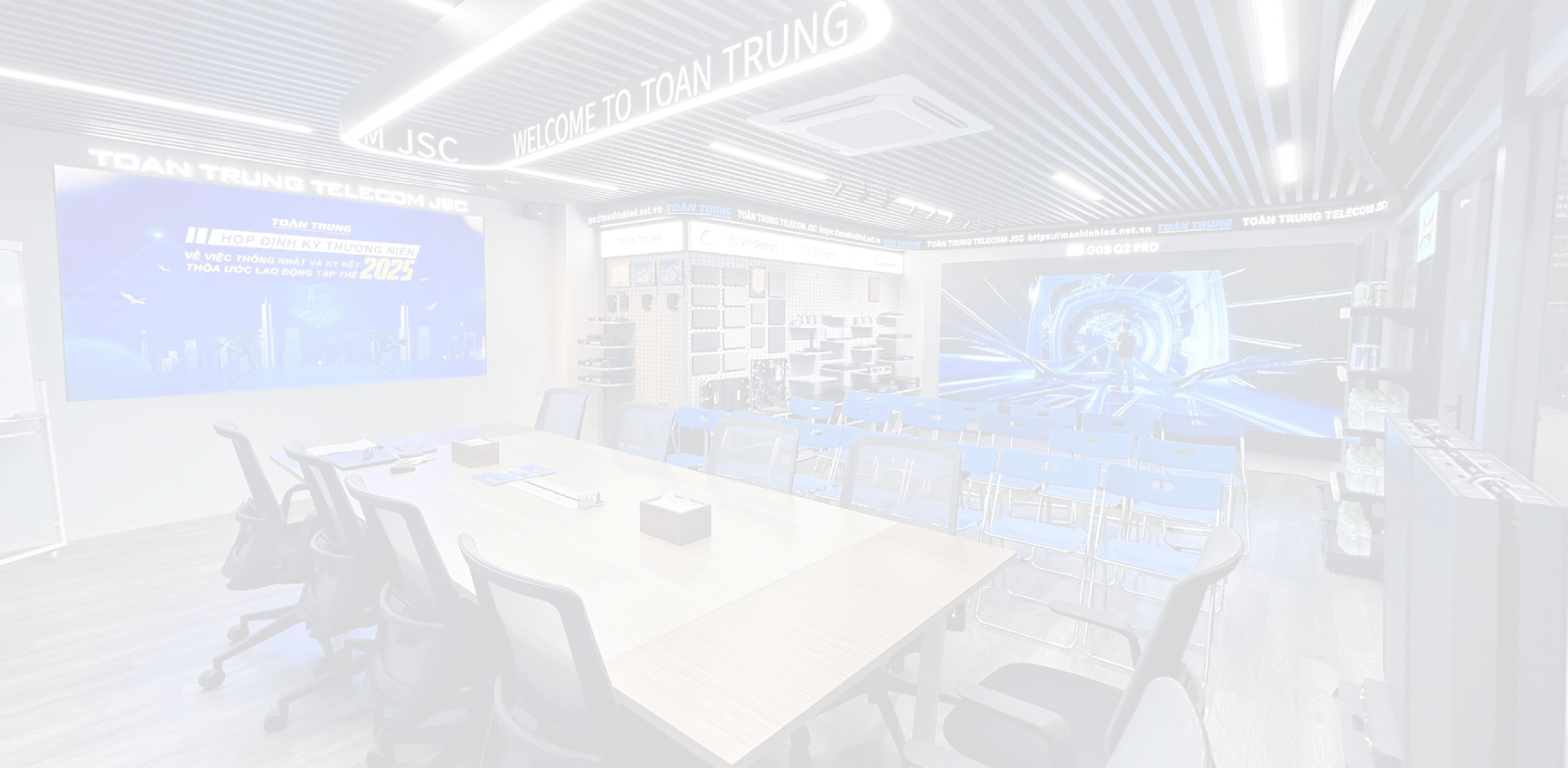

Large venue display applications such as : Rental Performance, TV broadcast center, Stage Entertainment & Theater, High-end meetings & Exhibitions etc.
● LedSync820H Connection Diagram
