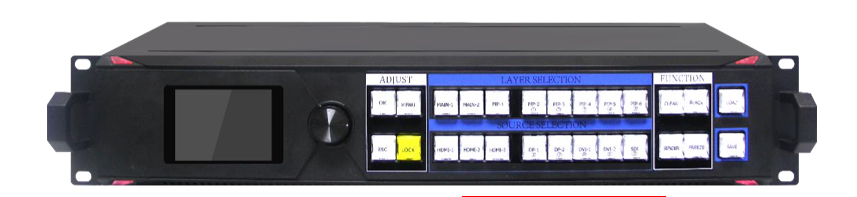

_The connection control processor is designed for direct LED display. Adopting industry-leading design technology and contributing to international and industry standards. The device supports 2U 4K@60Hz input (3840×2160@60Hz or 7680×1080@60Hz)
_The whole machine has 9.6 million pixels of customized load, which meets most of the field needs
_The single network port has a load of 650000 pixels, the maximum load of the whole machine is 9600000 pixels, the maximum width can reach 16000 points, and the maximum height can reach 8000 points. The single machine has 16 network port output
_Support 8 screen display, screen position arbitrary layout, support arbitrary video capture
_Humanized interactive control interface, with front-end switch, LCD information color screen, crystal keys and knobs
_EDID configuration management: support the reading, modification and customization of EDID (extended display identification data)
_The brightness and contrast of the first total screen can be adjusted in real _Supports multiple windows and multiple playback documents on the screen at the same time. Supports rich multimedia documents such as images, videos, texts, clocks _Support K-HDR, make common SDR material present HDR display effect, solve the pain of less HDR material
_Support 1.6GH Memory Controller, Quad Core CPU, 3D GPU, 1GB@600MHz DDR3 High Speed RAM _Support 1080p@30-60fps Hard Decode Playback
_Brand new program editor, drag and drop, do as you wish. Support 4G carriers in Vietnam.
_Support cloud platform decentralized management of wireless remote control management at any location, high bandwidth speed, high hierarchical management and multi-role program release, user-set master, set time frame projection, projection timer, play by content; schedule LED screen on/off
Supported input, output, and control ports: HDMI 1.3*2, HDMI2.0*1, CFG-1G x 1, ETH-100M, SIM 4G, USB CFG1/8 TRS Audio 3.5, SDI, DP1.2, RS232,DVI1.3*2 & the signal receiving card integrated in the processor.
Input voltage: 100-240V AC~50/60Hz 0.6A
Working temperature:
Weight: ~7-8kg
